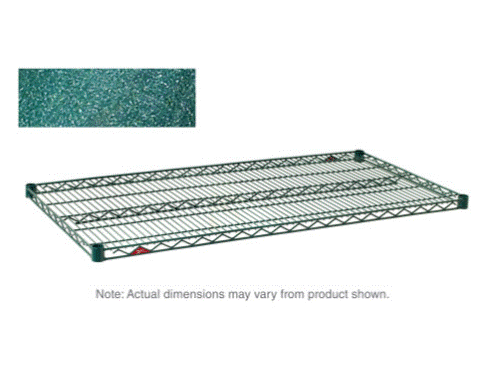

2472K3 Metroseal 3 with Microban - Epoxy coated wire shelf

Specification Sheet

• Unique Design: The open wire design of these shelves minimizes dust accumulation and allows free circulation of air, greater visibility of stored items and greater light penetration.
• Durable Construction: Super Erecta shelves and posts are constructed of heavy-gauge carbon steel or Type 304stainless steel.
• Choice of Finishes: Super Erecta BriteTM and chrome-platedfor dry storage; Metroseal TM Epoxy (green or gray), and Type 304 stainless steel for corrosive environments; and attractive epoxy color options for merchandising applications.
• Metro seal: Proprietary rust-resistant finish is a durable epoxy coating over a protective zinc substrate. Metro seal contains Microban® antimicrobial product protection which continuously fights the growth of bacteria, mold, and mildew that cause stains and odors. 12-year limited warranty against rust and corrosion.
• Versatile: Super Erecta® Shelf wire shelving can adapt to your changing needs. By using various accessories, hundreds of shelving configurations become possible.
• Fast, Secure Assembly: SiteSelect® Posts have a double groove visual guide feature every 8" (203mm), circular grooves at 1" (25mm) increments, and are numbered at 2" (50mm) intervals. A patented, tapered split sleeve snaps together around each post. Tapered openings in the shelf corners slide over the tapered split sleeves providing a positive lock. Shelf is assembled in minutes without the use of any special tools.
• Adjustability: Shelves can be adjusted at 1" (25mm) intervals along the entire length of the post.
• Shelf Ribs: Run front to back, allowing you to slide items on and off shelves smoothly.
• Shelf Accessibility: Shelves can be loaded/unloaded easily from all sides This open construction allows maximum use of storage cube.
• Adjustable Feet: Bolt levelers compensate for surface irregularities.

• See spec sheet 10.14 for epoxy color options.

• Plastic split sleeves are included with each shelf Replacements are available: Cat. No. 9985 (bag of 4)

• Aluminum split sleeves are recommended for abusive mobileapplications. Sleeves with stainless C-rings must be used for cart wash applications (exceeding 200°F/93°C) and for all autoclave applications. Cat. No. 9986Z (bag of 4 with zinc C-rings) Cat. No. 9986S (bag of 4 with stainless steel C-rings)

• Weight capacity (evenly distributed) per shelf 800 Ibs. (363kg) for lengths of 18" to 48" (457 to 1219mm) 600 Ibs. (272kg) for lengths of 54" (1370mm) or longer

• Weight capacity (evenly distributed) per unit. Stationary shelving units have a maximum load capacity (evenly distributed) of 2,000 Ibs. (907kg). Mobile units have a maximum capacity of three times the caster load rating up to but not exceeding 1,000 Ibs. (453kg) total. Consult the Metro catalog for caster load ratings.
